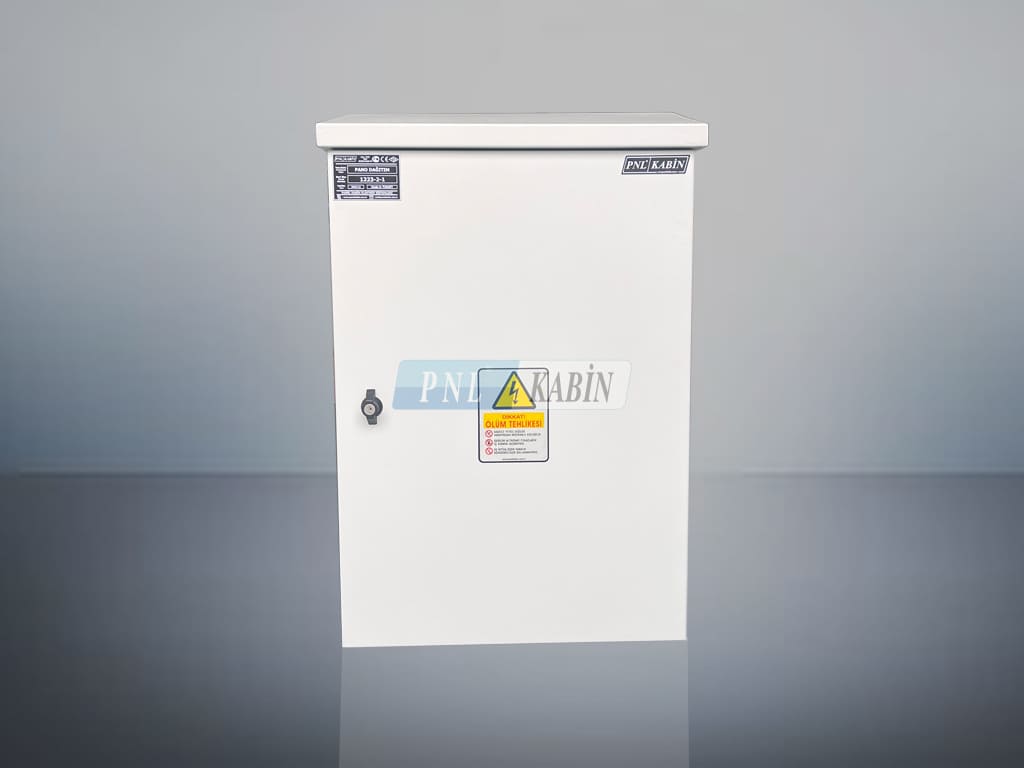

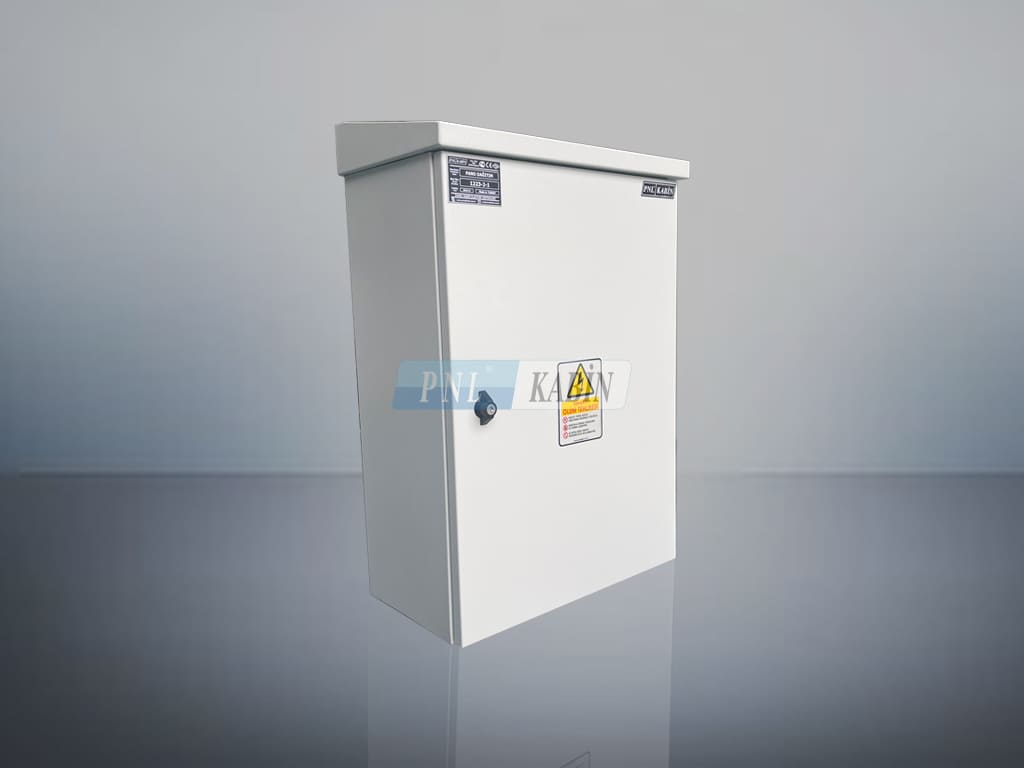

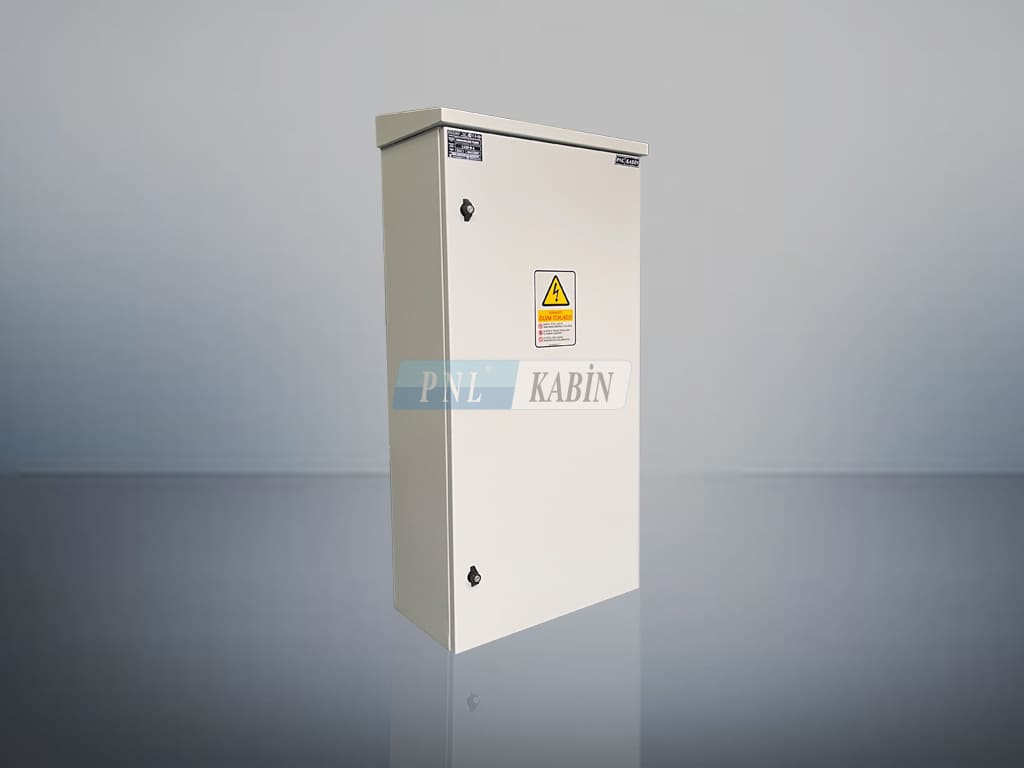

DDH Outdoor Wall Mounted Panels

It is our panel group designed as Outdoor Wall type.

Wall Mounted Panels, are panel systems that are generally used for various purposes such as floor panels, meter panels, apartment panels in Production Facilities, Residences, Offices, Hospitals and similar facilities, enabling the distribution and control of electrical energy in smaller areas and at the same time maintaining smaller electrical systems.

Explanation	Applicable Feature
Application Types	With Mounting Plate (MP), Curtain Sheet (PS), Meter Cover (SP)
According to Place of Use	Indoor/Outdoor
Protection Class	Up to IP65
Framework	Monoblock Welded 1/1,2mm DKP
Impact Rating/IK Code	IK10
Gasket Type	Liquid Polyurethane Cast Gasket
Color Code	Electro Static Powder PaintRAL 7035W
Base Color Code	Electro Static Powder PaintRAL 9005W
Optional Features	POC Series Tempered Glass
	POP Series Plexiglass Glass
	PODD15 Series 1.5mm Body and Cover
	PODD20 Series 2mm Body and Cover
	PORAL Series Paint Ral Code Change
	POA5 Serial Sheet A5 Project Pocket
	PO Series Metal Scissor Lid Stopper

Width(cm)	Height(cm)	Depth(cm)
80	130	20
70	120	25
60	110	30
50	100	40
40	90
	80
	70

Explanation	Applicable Feature
Hinge	From 2 or 3 points
Lock Type	1 or 2 Point Butterfly Lock
Floor-Wall Fixing	4 Mounting Brackets
Operating Temperature	5°C , +40°C
Business Relative Humidity	+20°C at %90 , +40°C at %50
Sheet Thickness and Types	Monoblock Body Welded 1/1.2 mm DKP
	Front Door 1/1.2 mm DKP
	Mounting Plate 1.5 mm Galvanized
	Cover Plates Profile 1.2 mm DKP
	Cover Plates 1/1.2 mm DKP
	Internal Mounting Parts 1.5 mm Galvanized
	Vending Module Aluminum
	Semi Modular Welded 1.5 mm DKP
Cover Plates Usable Area (cm)	Width-15cm
Cover Plates W Vending Module Numbers	W:80 cm 36W, W:70 cm 30W, W:60 cm 24W, W:50 18W
Mounting Plate Usable Area(cm)	Width-6cm x Height-8cm
Front Door Usable Area (cm)	Width-20cm x Height 6cm
Plinth Attachment to the Floor Dimensions (cm)	Width-9cm x Depth-9cm with M12 Bolt

Applicable Standards
Full Type Test IEC EN 61439-1/2 4000A 100kA Form 4B Low voltage switching and control equipment
TSE EN 61439-1/2, IEC EN 61439-1/2 Low voltage switching and control equipment
TSE EN 62208, IEC EN 62208 Empty Enclosures - Low voltage switching and control equipment
Degree of Protection Provided in TSE EN 60529, IEC EN 60529 Enclosures (IP Code)
TSE EN 62262, IEC EN 62262 Electrical Equipment Against External Mechanical Impacts
Turkak ISO 9001-2008 Quality Management System
Gost-R ,EAC Russia Declaration
CE 2006-95AT Low Voltage Directive
2014 88671 Trademark Registration
ISO 140001:2015 Environmental Management System
ISO 450001:2015 Occupational Health and Safety Management System
