WRPCC Withdrawable Compensation

WRPCC Withdrawable Compensation

Compared to standard compensation panels, the fact that the stages are withdrawable provides the opportunity to intervene in the panel without being exposed to a power outage in case of malfunction and maintenance. With the regular placement of capacitors, up to 500kvar power can be obtained in one panel.

Withdrawable Compensation panels play an important role in energy efficiency and power factor improvement. A properly designed and maintained compensation panel can reduce energy consumption, lower energy costs and ensure safer and more efficient operation of electrical facilities.

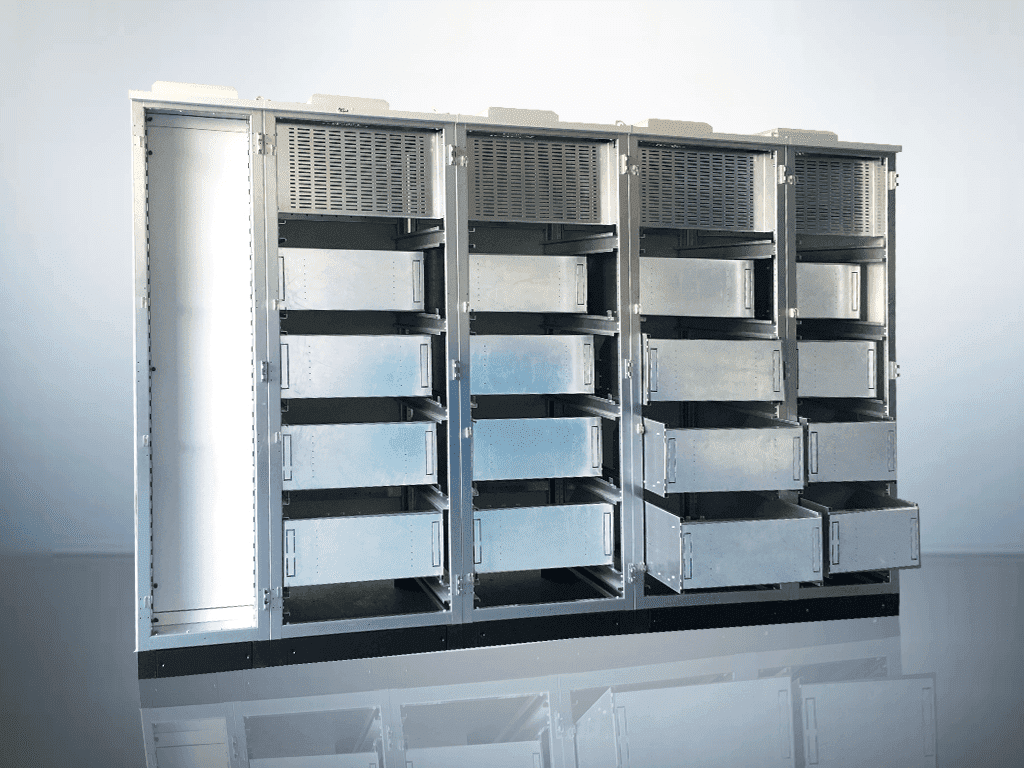

Drawer modules can be removed and installed thanks to their socket structure, providing the user with greater ease of use compared to wired systems. In order to remove the drawer for repair or maintenance purposes, the security pin must first be removed. Drawer types vary depending on the shunt reactor, harmonic filter and capacitor sizes to be used inside. The most suitable drawer is offered to the user according to the project.

WRPCC panels are designed for applications up to 2500 KVA, taking into account harmonics and the most appropriate stepping options. In electrolytic assembly, electrolytic copper busbars suitable for total power and short circuit currents are selected and supported at appropriate intervals within IEC 61439-1 and TS 3367 standards. Withdrawable Compensation panels play an important role in energy efficiency and power factor improvement.
